VSD Air Compressor

VSD Air Compressor ของ DENAIR: การผสมผสานที่ลงตัวระหว่างเทคโนโลยีและประสิทธิภาพ



DENAIR VSD Air Compressor ผสานรวมการออกแบบเครื่องอัดอากาศแบบสกรูที่แข็งแกร่งเข้ากับเทคโนโลยี Variable Speed Drive (VSD) ที่ล้ำสมัย เพื่อมอบโซลูชันอากาศอัดที่เหนือกว่า

เรามอบการทำงานที่:

  • น่าเชื่อถือสูงสุด: ด้วยการควบคุมความเร็วรอบที่แม่นยำ ทำให้มั่นใจได้ว่าเครื่องจักรจะทำงานได้อย่างราบรื่นและมีอายุการใช้งานยาวนาน

  • ประหยัดพลังงานเป็นเยี่ยม: ระบบจะปรับการใช้พลังงานตามความต้องการลมที่แท้จริง ช่วยลดค่าไฟฟ้าได้อย่างมีนัยสำคัญ

  • เพิ่มผลผลิต: การจ่ายอากาศที่สม่ำเสมอและคงที่ช่วยให้กระบวนการผลิตของคุณดำเนินไปอย่างต่อเนื่องโดยไม่มีสะดุด

สินค้าที่จัดจำหน่าย

Twin Stack Small Portable Reciprocating Air Compressor 2 hp

โครงการใหม่ (10).png

Standard VSD Air Compressor

โครงการใหม่ (11).png

PM VSD Screw Air Compressor

  • VSD compressor adjusts the motor's speed based on the actual air demand, which lowers the system pressure and can reduce energy costs by 35% or more.


  • Removing the low-efficiency transformation process from full loading to unloading.

  • Avoiding power usage during the unloading process.

  • Keeping the pipeline pressure drop under 0.1 bar.

  • Reducing the average working pressure.

  • Lowering the system pressure to reduce system leakage.

  • Using a soft-starting method to increase current balance and avoid current surges.

Air End Design:

  • Efficiency & Performance: Uses a patented third-generation 5:6 tooth profile, which is highly energy-efficient with a volume efficiency of over 95%. It operates continuously at up to 110°C.

  • Durability: Features a large rotor and center distance, as well as high-quality Sweden SKF bearings, which contribute to a long lifespan.

  • Quiet Operation: Designed for a lower noise level.

Oil Filter:

  • High Efficiency: Provides effective impurity separation, with 99% of impurities larger than 30 μm being filtered out.

  • Durability: Designed to withstand high working pressures up to 20 bar and temperatures up to 120°C. Made with a German resin wood fiber element and a PTFE seal.

Inlet Valve:

  • Reliability: Features a solenoid valve from the Italy ODE brand and an integrated design that reduces the risk of failure and lowers maintenance needs.

  • Efficiency: Designed for low energy consumption during unloaded operation and includes a fast-check function to prevent oil injection during shutdown.

Vector Inverter:

  • Advanced Protection: Offers comprehensive protection against various electrical faults such as phase loss, over-current, over-voltage, and more.

  • Control & Efficiency: Provides a high utilization rate, precise control procedures, and an ultra-wide frequency range for efficient operation.

Stainless Pipeline:

  • Longevity: Made from 304 stainless steel, offering a service life of 100 years.

  • Extreme Durability: Has excellent resistance to corrosion and wear. It can operate safely in extreme temperatures from -270°C to 400°C. Its tensile strength is significantly higher than that of galvanized, copper, or PPR pipes.

Cooling Fan:

  • Simple & Effective: Provides a simple, low-noise, high-capacity cooling solution that is maintenance-free.

Lubricated_Screw_Air_Compressor (1).png

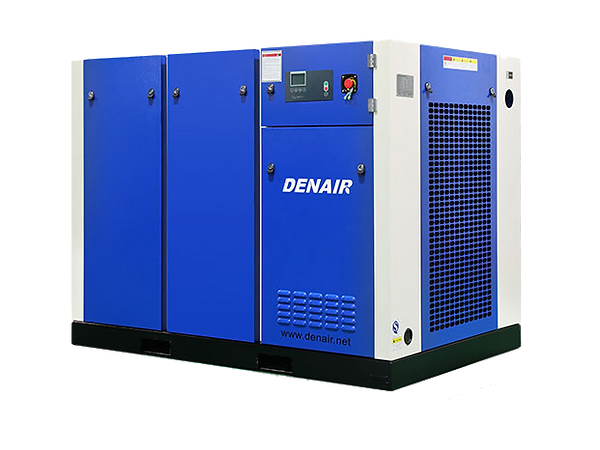

Two Groups PM SVD Screw Air Compressor (30-400kW)

  • Ultra-low temperature rise design, which allows the compressor running at ultra-low frequency for a long time.

  • Closed-loop vector control system for faster control and more precise speed control.

  • The compressor unit can still operate efficiently when the frequency is reduced by more than 50%.

  • The pressure is stable and the pressure fluctuation is accurately controlled within 0.1 bar.

  • The figure shows a comparison of several starting methods. It can be seen that the frequency converter is slowly accelerated to start, the starting is more stable, and the current peak is completely avoided.

Low Pressure Air Compressor

DENAIR Low-Pressure Screw Air Compressor เป็นเครื่องอัดอากาศที่ออกแบบมาเพื่อใช้กับงานที่ต้องการแรงดันต่ำโดยเฉพาะ ซึ่งแตกต่างจากเครื่องอัดอากาศทั่วไปที่ใช้กับงานแรงดันสูงกว่า ทำไมต้องเลือกเครื่องอัดอากาศแรงดันต่ำของ DENAIR? ประหยัดพลังงานสูง: หากโรงงานของคุณต้องการแรงดันเพียง 3-5 บาร์ การใช้เครื่องอัดอากาศทั่วไปที่ 7-8 บาร์จะทำให้สิ้นเปลืองพลังงานอย่างมาก เครื่องรุ่นนี้ช่วยลดค่าไฟได้ถึง 20%-50% เพราะสามารถส่งปริมาณลมได้มากกว่า ออกแบบมาเพื่องานเฉพาะทาง: เหมาะสำหรับอุตสาหกรรมที่ต้องการแรงดันต่ำ เช่น โรงงานสิ่งทอ, ปูนซีเมนต์, และโรงงานแก้ว ส่วนประกอบคุณภาพสูง: ใช้หัวสกรูจากเยอรมนี พร้อมลูกปืน SKF จากสวีเดน และอุปกรณ์อิเล็กทรอนิกส์จากแบรนด์ชั้นนำระดับโลกอย่าง Schneider (ฝรั่งเศส) และ Danfoss (เดนมาร์ก) ทำให้มั่นใจได้ในเรื่องความทนทานและอายุการใช้งานที่ยาวนาน ประสิทธิภาพการทำงานที่เหนือกว่า: ให้ลมที่ไหลสม่ำเสมอและมีแรงดันคงที่ ทำให้กระบวนการผลิตไม่สะดุดและเพิ่มประสิทธิภาพโดยรวมได้เป็นอย่างดี

สินค้าที่จัดจำหน่าย

Lubricated_Screw_Air_Compressor (1).png

Low Pressure Screw Air Compressor

  • It will cause a terrible waste of electric power if choose a routine 7bar air compressor when the maximum working pressure is 2 to 5bar. DENAIR low-pressure screw air compressor can enlarge the air delivery under the same motor power to help you save 20% to 50% electric power.

  • State-of-the-art screw element, original Germany DENAIR air end, advanced SAP profile design, superior Sweden SKF element bearings.

  • Adopts world-renowned components, such as Schneider electronics from France, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.

  • Conform to CE, ISO9001 and energy saving certification, etc.

  • Designed especially for textile, cement and glass industry, etc.

Our Clients

Power of the Quality
